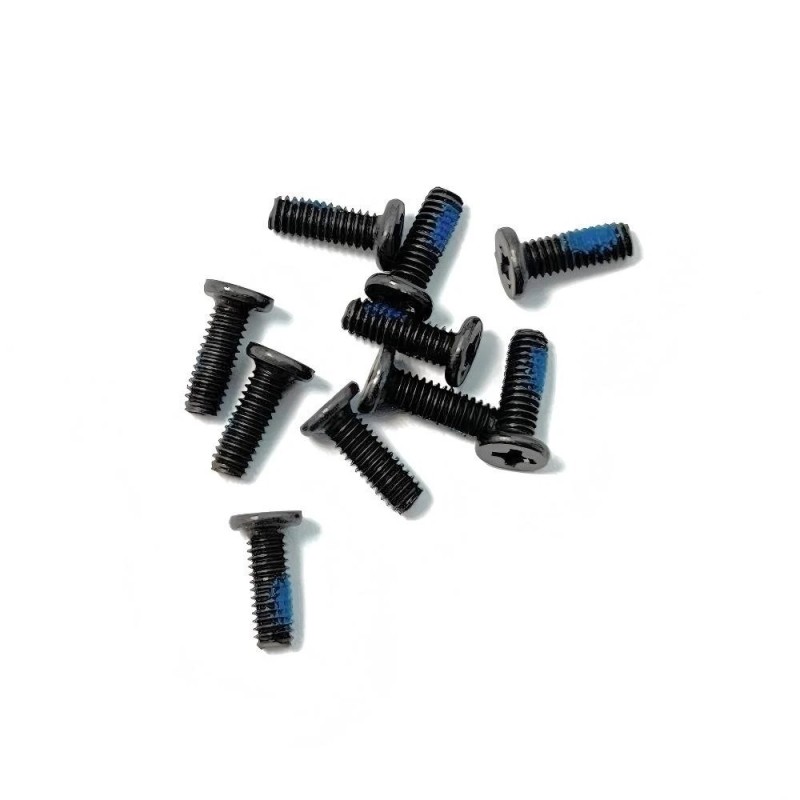

ASUS ExpertBook B3 Flip B3402 B3402FBA Bottom Case screws

Compatible Model:
ASUS ExpertBook B3 Flip B3402FBA
ASUS ExpertBook B3 Flip B3402 (12th Gen Intel)
ASUS ExpertBook B3 Flip (B3402, 11th Gen Intel)
ASUS ExpertBook B3 Flip B3402FBA (Model Number: B3402FBA)

• Screw Specification: Cross-head (Phillips) screws

📌 Disassembly Instructions :

Steps to open the bottom case:

1. First, remove the stylus pen from the garage (if present).

2. Unscrew all 10 cross-head screws on the bottom panel.

3. Use a plastic spudger/prying tool to carefully pry open the bottom cover.

Internal specifications :

• Dimensions: 32.9 x 22.39 x 1.93 cm

• Weight: 1.61 kg

• Battery: 50WHrs, 3-cell lithium-ion

⚠️ Important Notes:

• Use a Phillips #0 (PH0) screwdriver to avoid stripping the screw heads.

• When reassembling, do not overtighten screws to prevent stripping the threads or cracking the plastic screw posts.
